🔍 JC170 Driver Monitoring Camera – AI-Powered Driving Safety! 🎯🎥

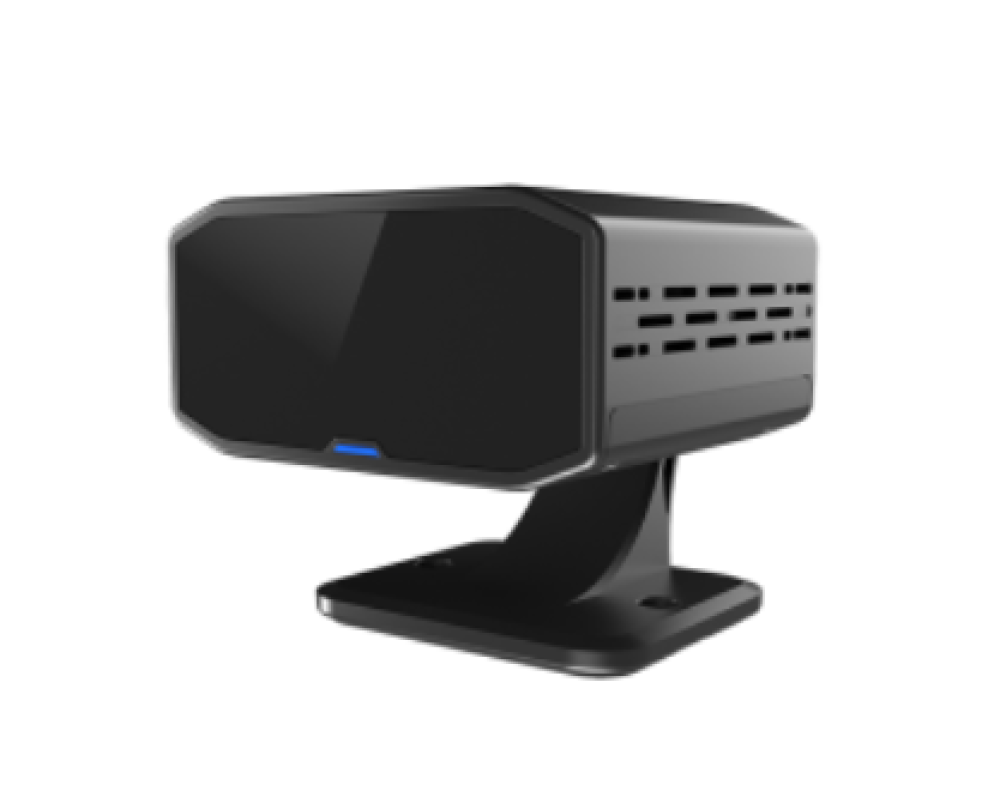

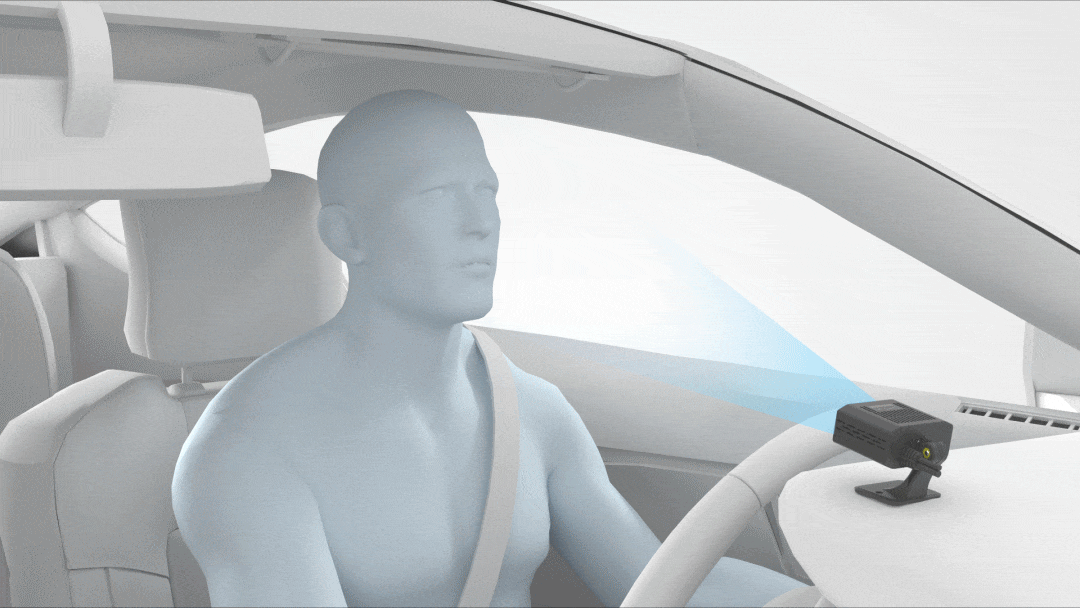

The JC170 is a compact, intelligent camera system designed as part of a Driver Monitoring System (DMS). It leverages AI algorithms to detect signs of driver fatigue, distraction, or inattention, issuing real-time voice alerts 📢 and uploading data to a cloud platform 🔗 for further analysis and decision-making.
✅ Fully compatible with the JC261 camera system.
📦 Technical Specifications:
🎥 Camera Module:
- Resolution: 1280×720 HD 🖼️
- Frame Rate: 15 FPS 🎞️
- Aperture: F2.4
- Color Mode: Monochrome ⚫
- Horizontal Field of View (HFoV): 56° 🔭
- Video Format: MP4 🎬
🎧 Audio & Interface:
- Speaker Support: Yes 🔊
- Ports:
- Micro USB ×1
- TTL Interface ×1
- TF Card Slot: Supports up to 128 GB 💾
💡 LED Indicators:
- 🔴 Red: Power
- 🟢 Green: Monitoring Active
- 🔵 Blue: Alignment
⚡ Power & Environmental Ratings:
- Input Voltage: DC 9–30V 🔋
- Operating Temperature: –20°C to +70°C ❄️🔥
- Storage Temperature: –30°C to +85°C 🧊
📏 Physical Dimensions:
- Weight: 216g ⚖️
- Size: 68 × 55 × 33 mm 📐
📜 Certifications:
- ✅ CE
- ✅ FCC
- ✅ RoHS
🔒 Summary:
The JC170 is a smart and reliable tool for fleet safety monitoring 🚚. It enhances driver security and reduces accident risks through instant alerts and AI-based behavioral analysis. Its rugged design and cutting-edge technology make it an ideal solution for demanding environments and long-haul transport operations 🛣️.
